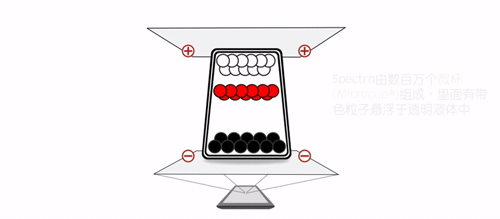

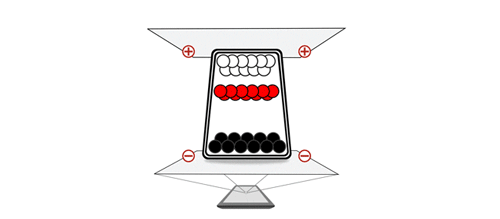

Three particle ink system in a Microcup® structure. This ink was engineered specifically for Electronic Shelf Labels (ESL) and is offered in black, white and red, and black, white and yellow. This ink system works similarly to the dual particle system, in that a charge is applied to the particles, and to a top and bottom electrode to facilitate movement. However, instead of the use of microcapsules, this system utilizes Microcups®, which are filled with liquid and sealed.
Tri-color

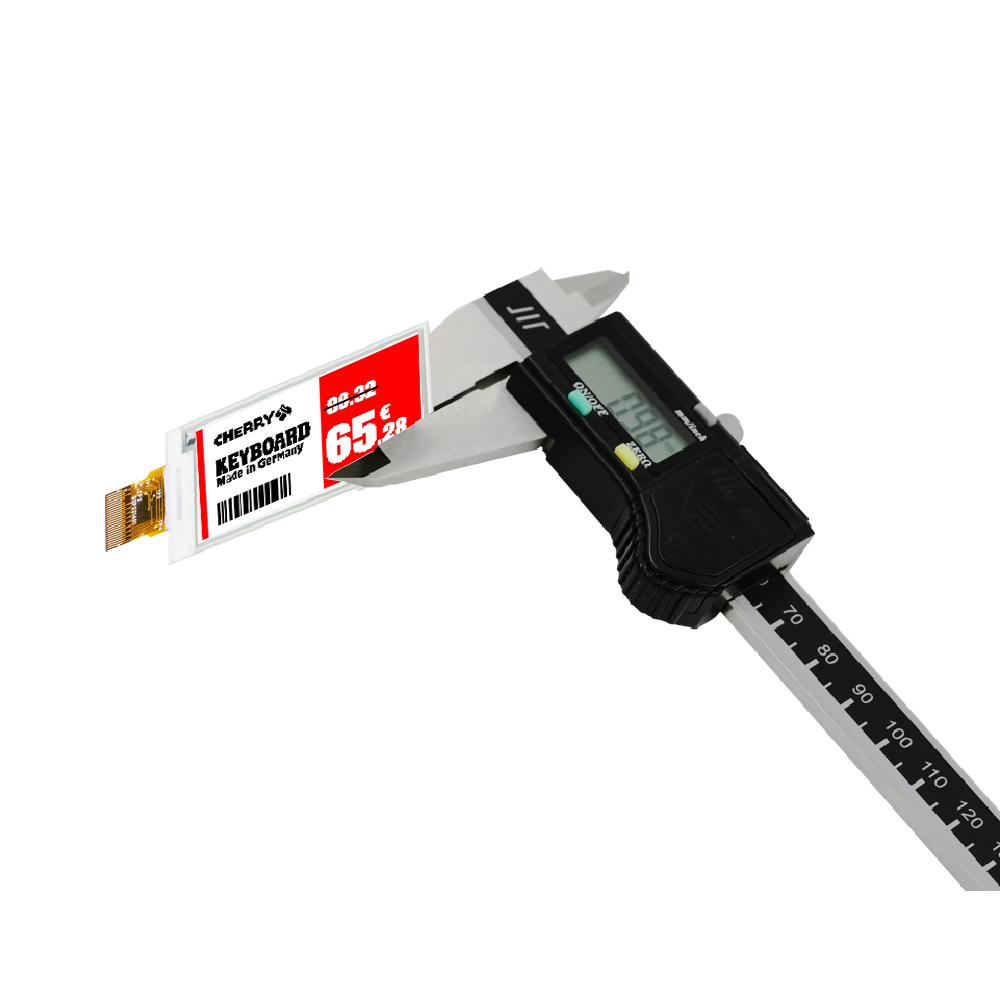

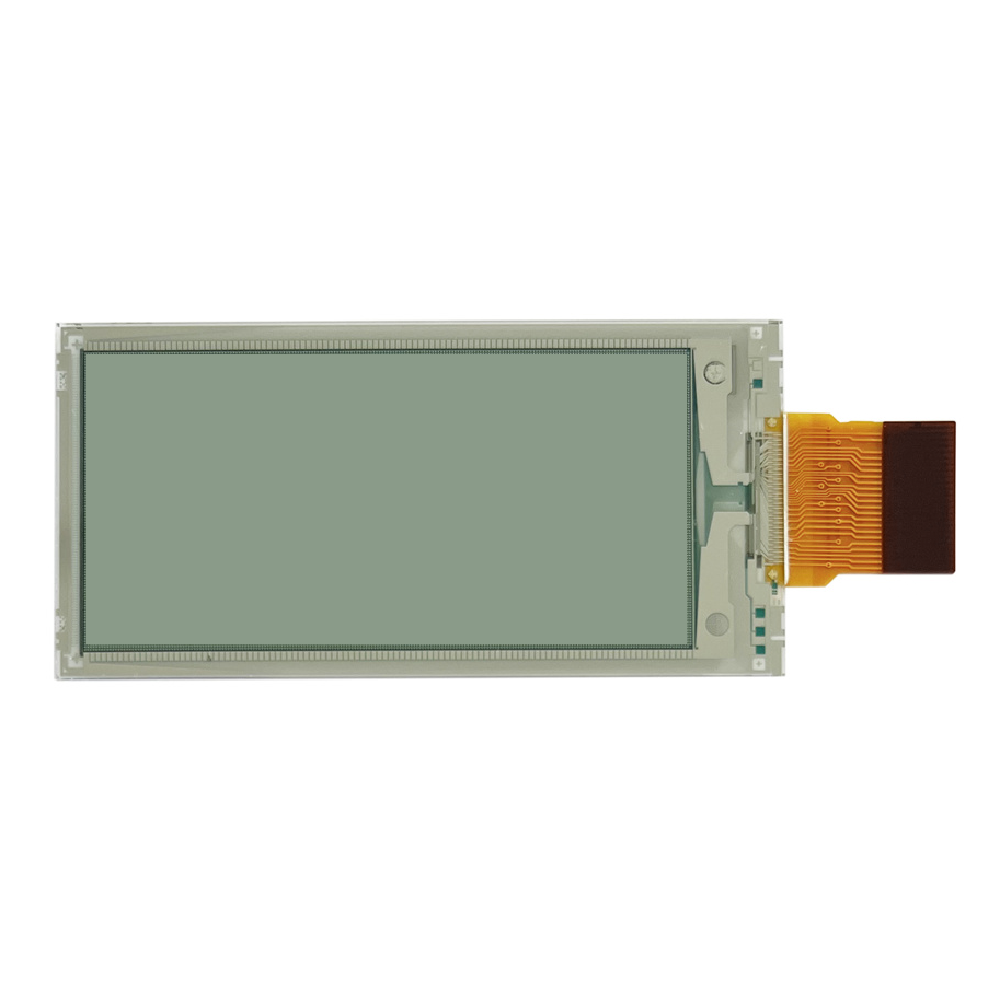

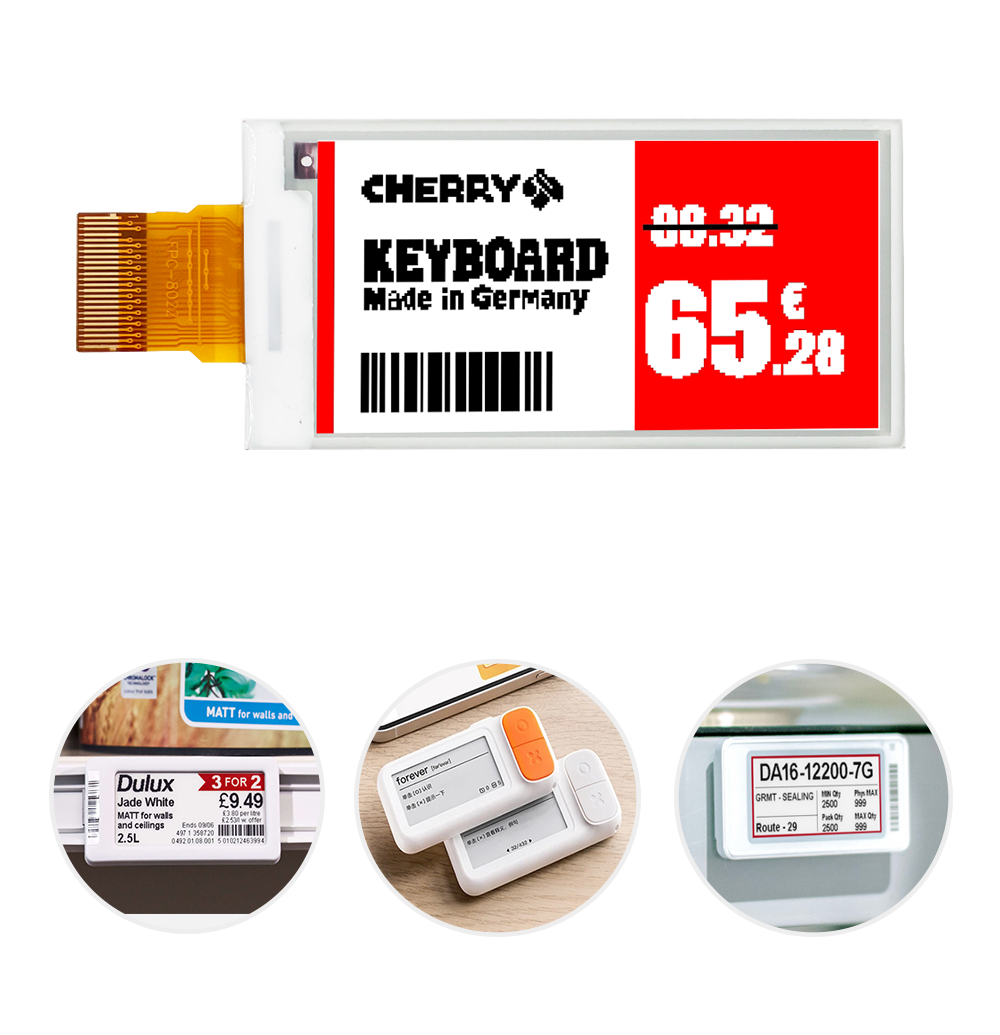

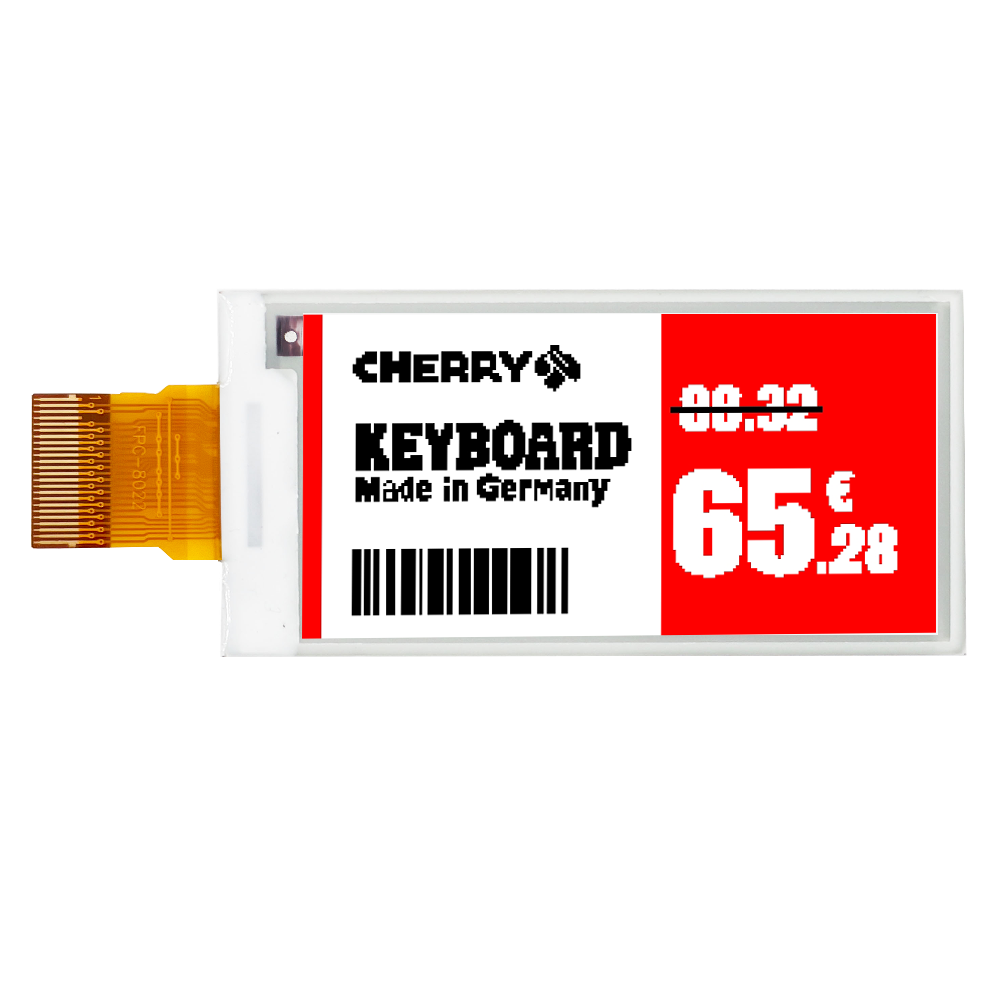

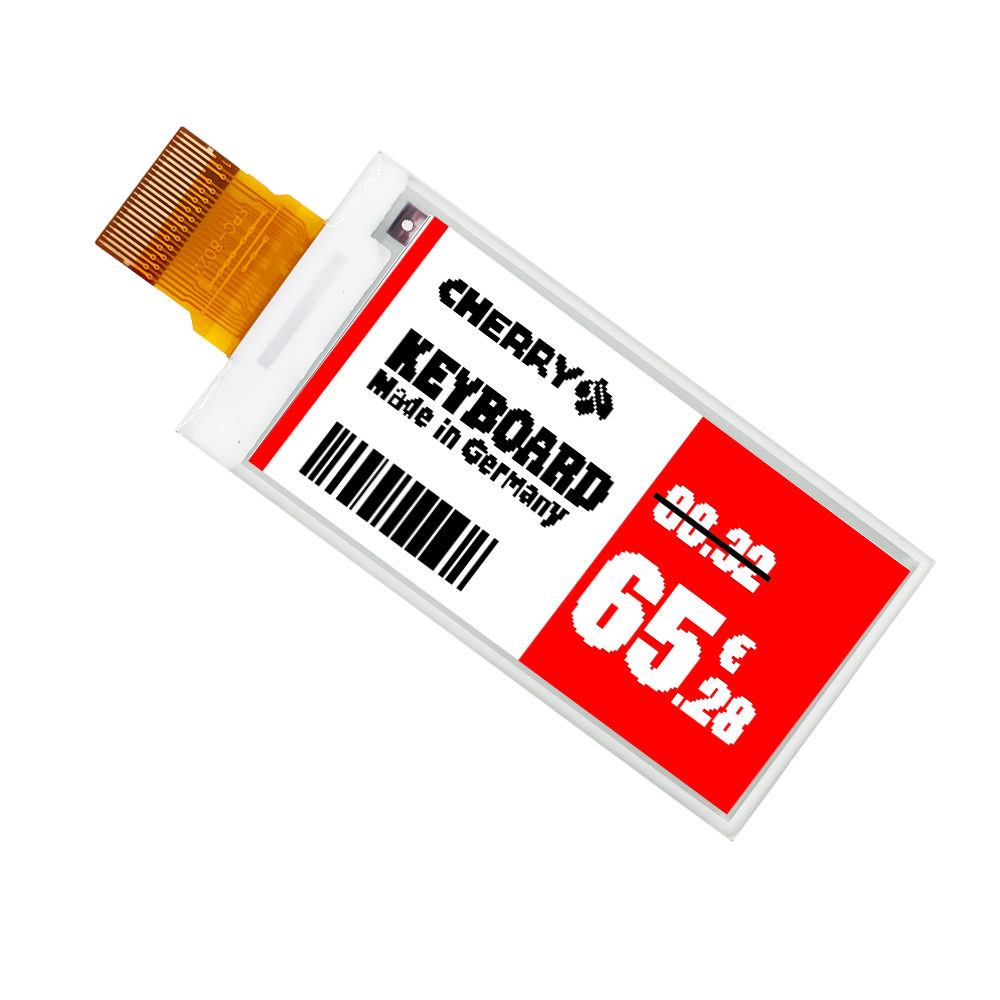

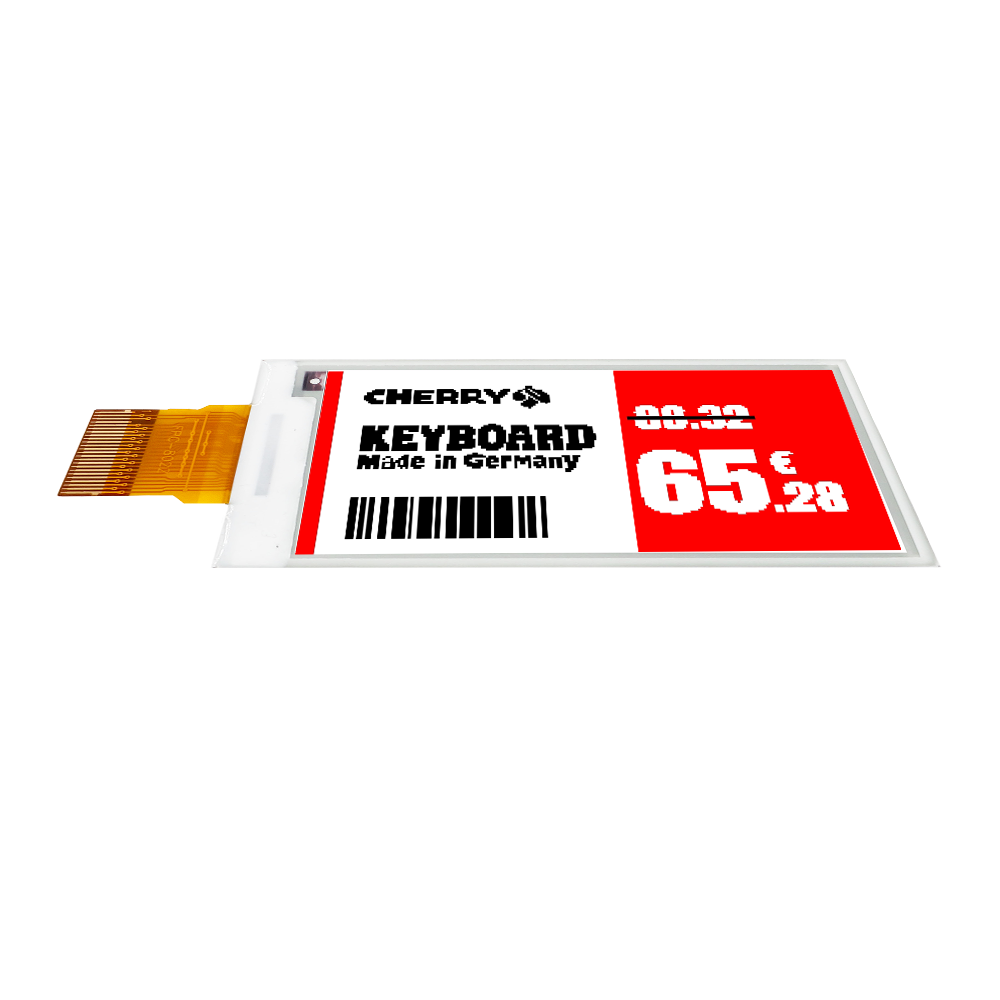

2.13 Inch 3 Color E-paper Display
Size2.13 Inch
Exterior(mm)29.2(H)×59.2 (V)
ColorBlack/White/Red
Visual field(mm)23.7(H)×48.5 (V)
DPI130
Resolution(px)122(H)×250(V)
Connection type SPI
Pixel distance(mm)0.1942×0.1942
Working voltage 3.0V
ICSSD1680
Operation temperature0-50℃
Substrate Type Glass base
Weight(g)3.2±0.5
DKE 东方科脉
DKE成立于2005年，十多年来一直致力于电子纸市场。现已成为集研发、设计、生产为一体的电子纸显示技术产品的专业制造商和服务商。如今，DKE也是全球电子纸行业的核心企业之一，在浙江嘉兴、辽宁大连市和越南拥有四个生产基地，员工总数超过千人。
How e-paper works
| E-paper Series | Color |
| Black&White | Black,White |
| Tri-Color | Black, White, Red, |
| Four-Color | Black, White, Red, Yellow |
| N-Color | Black, White, Red, Yellow, Blue, Green, Orange |
| Flexible | Bendable, Thin and Robust |
| Segment | Customization Supported |
