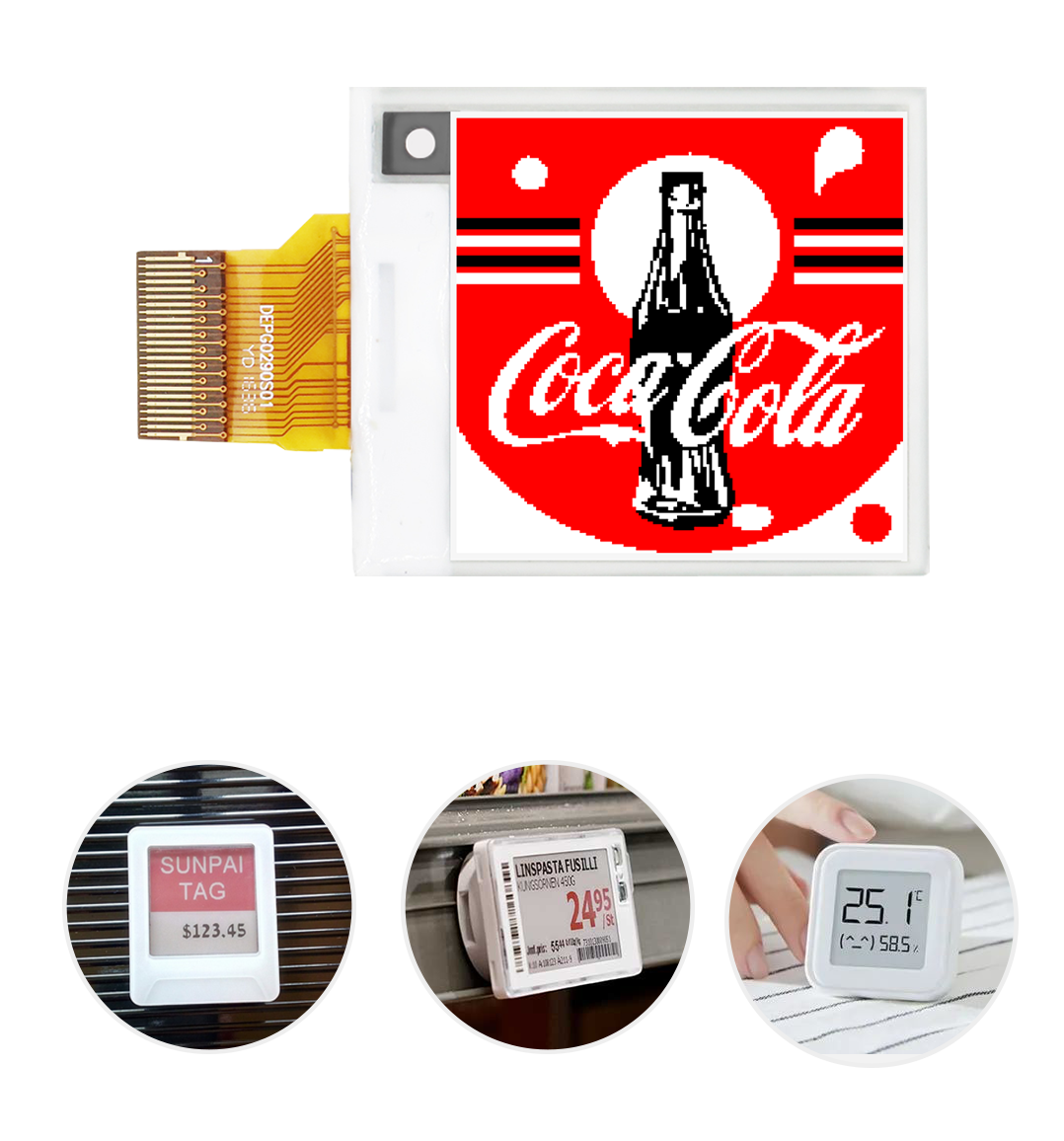

Three particle ink system in a Microcup® structure. This ink was engineered specifically for Electronic Shelf Labels (ESL) and is offered in black, white and red, and black, white and yellow. This ink system works similarly to the dual particle system, in that a charge is applied to the particles, and to a top and bottom electrode to facilitate movement. However, instead of the use of microcapsules, this system utilizes Microcups®, which are filled with liquid and sealed.
Tri-color

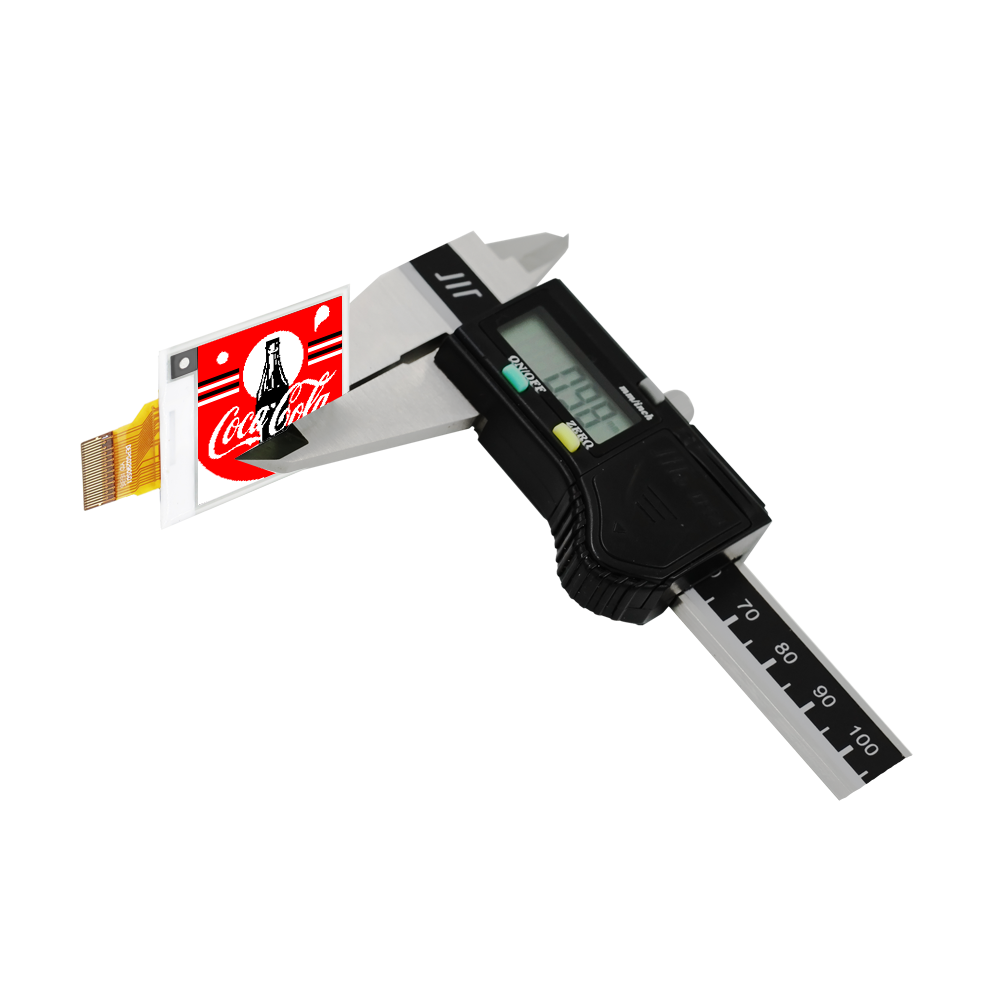

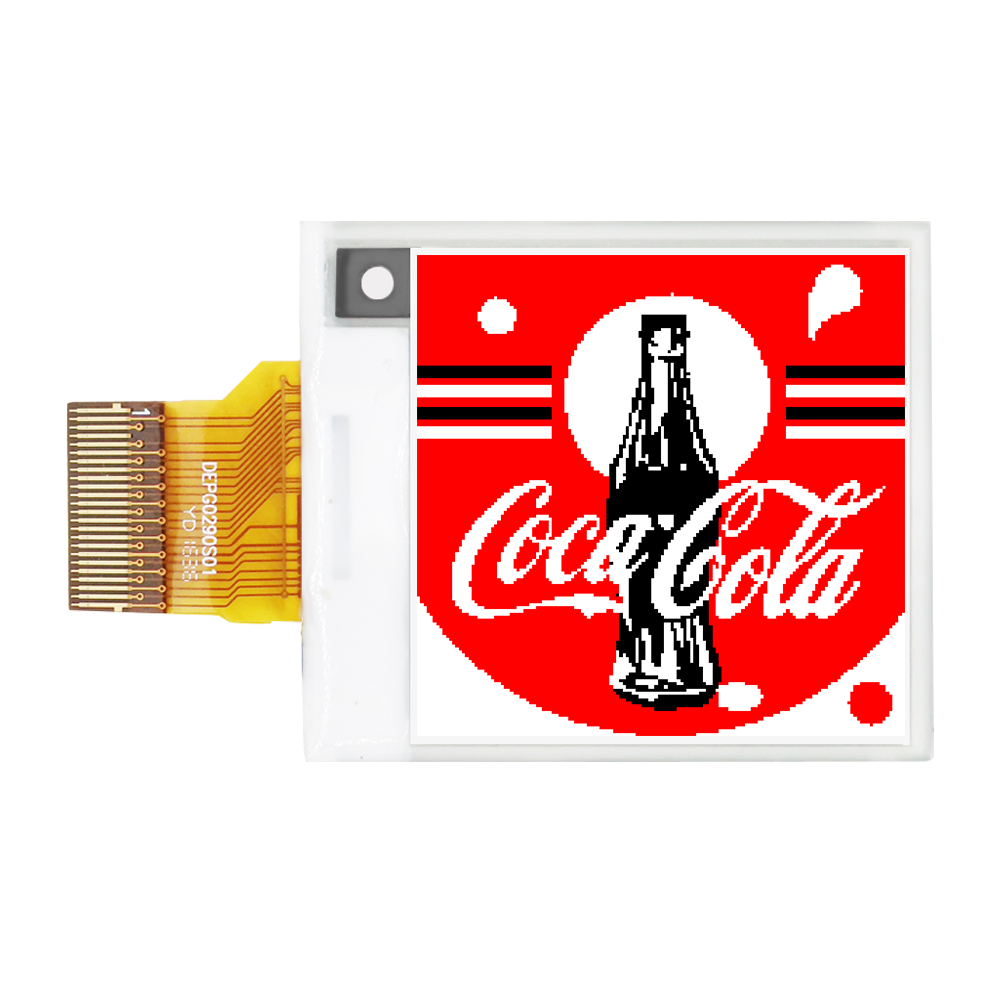

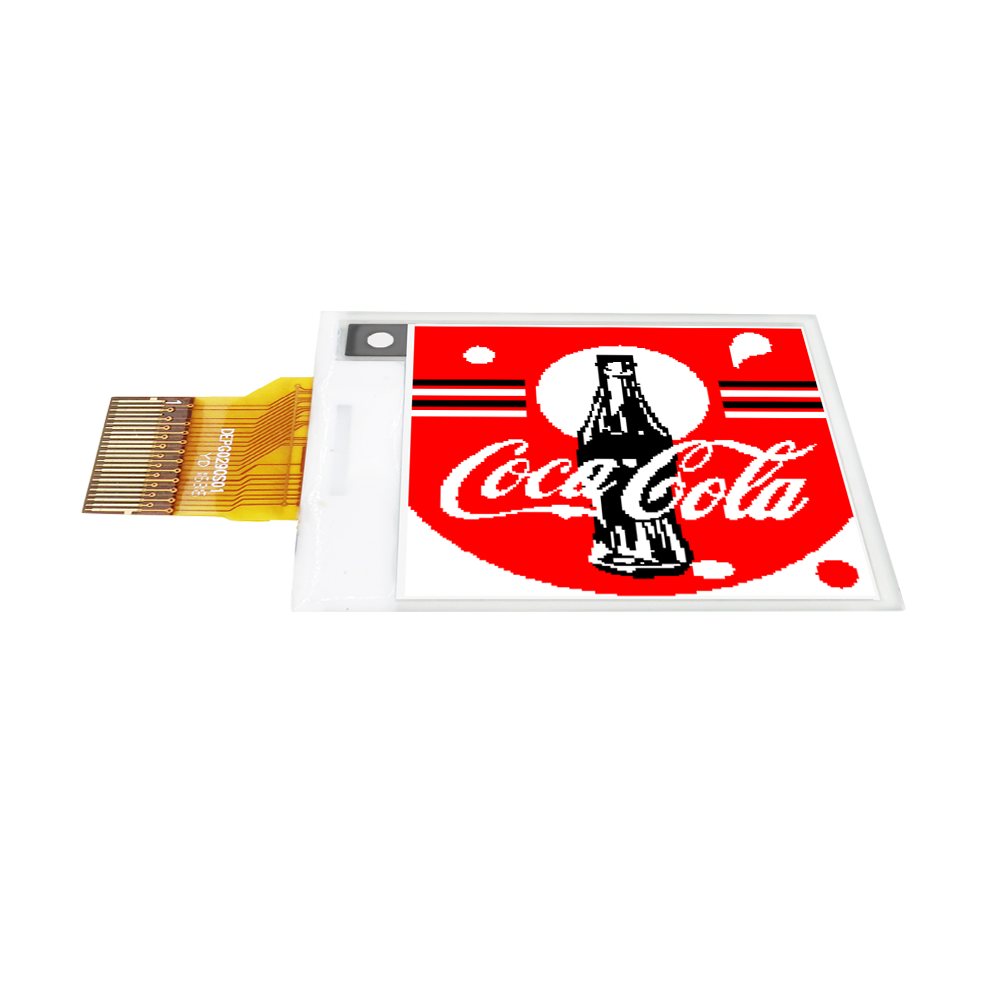

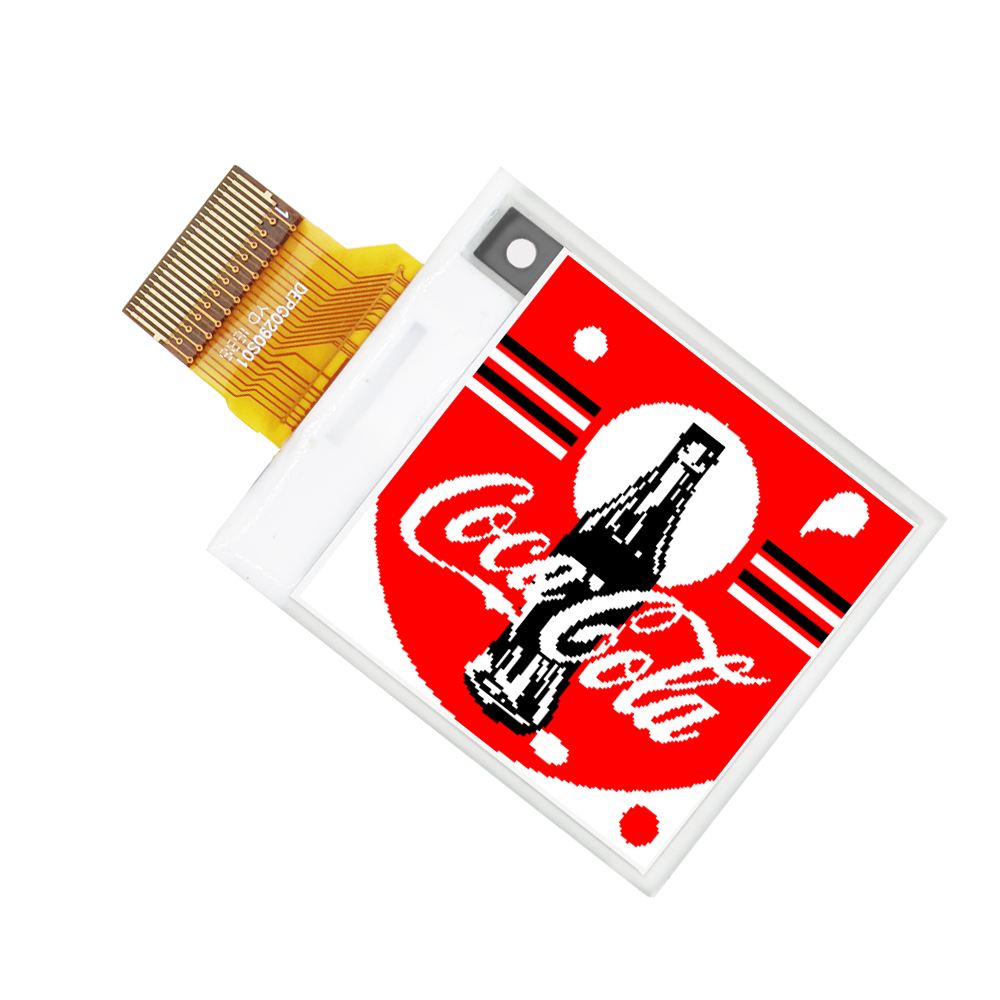

1.54 Inch 3 Color E-paper Display
Size1.54 Inch
Exterior(mm)31.8(H)×37.3 (V)
ColorBlack/White/Red
Visual field(mm) 26.98(H)×26.98(V)
DPI140
Resolution(px)152(H)x152(V)
Connection type SPI
Pixel distance(mm)0.1775×0.1775
Working voltage 3.0V
ICSSD1681
Operation temperature0-50℃
Substrate Type Glass base
Weight(g)2.18±0.5
DKE Holding Company Limited
DKE was founded in 2005 and has dedicated continuously and diligently for over a decade to the E-paper market. Now we are a professional manufacturer and service provider of E-paper display technology products integrating R&D, design, production, and sales of many E-paper display modules. Now DKE is also one of the core enterprises of the global E-paper industry. DKE boasts four manufacturing bases in Jiaxing City, Zhejiang Province， Dalian City, Liaoning Province, and Vietnam， with a total number of employees of over one thousand.
How e-paper works
| E-paper Series | Color |
| Black&White | Black,White |
| Tri-Color | Black, White, Red, |
| Four-Color | Black, White, Red, Yellow |
| N-Color | Black, White, Red, Yellow, Blue, Green, Orange |
| Flexible | Bendable, Thin and Robust |
| Segment | Customization Supported |
