Multi-particle ink system, Advanced Color ePaper (E Ink ACeP™). The ACeP™ ink platform achieves a full color gamut, including all eight primary colors, by using colored ink particles. The ink can be incorporated into either microcapsule or Microcup® structures. Color is achieved by having all the colored particles in every pixel, removing the need for a color filter array (CFA). ACeP™ maintains ultra-low power and paper-like readability under all lighting conditions of regular E Ink ePaper.
Full-color

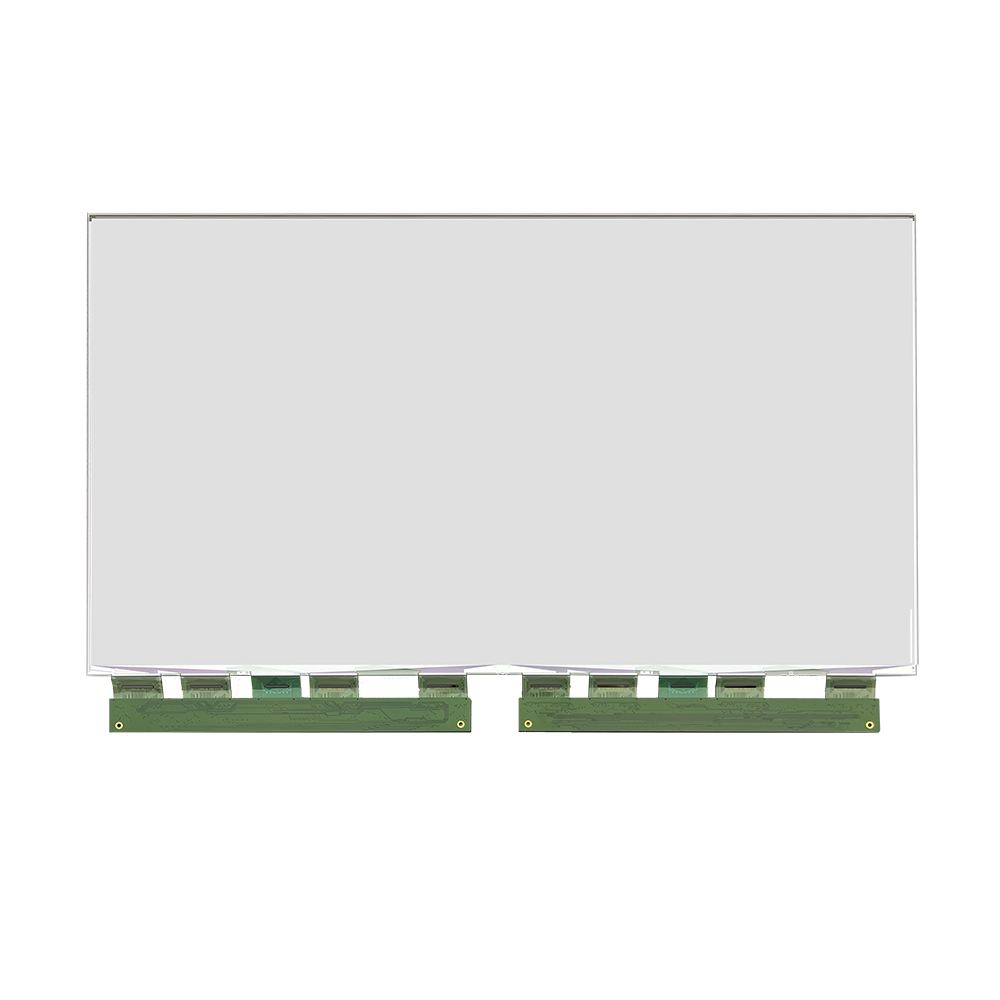

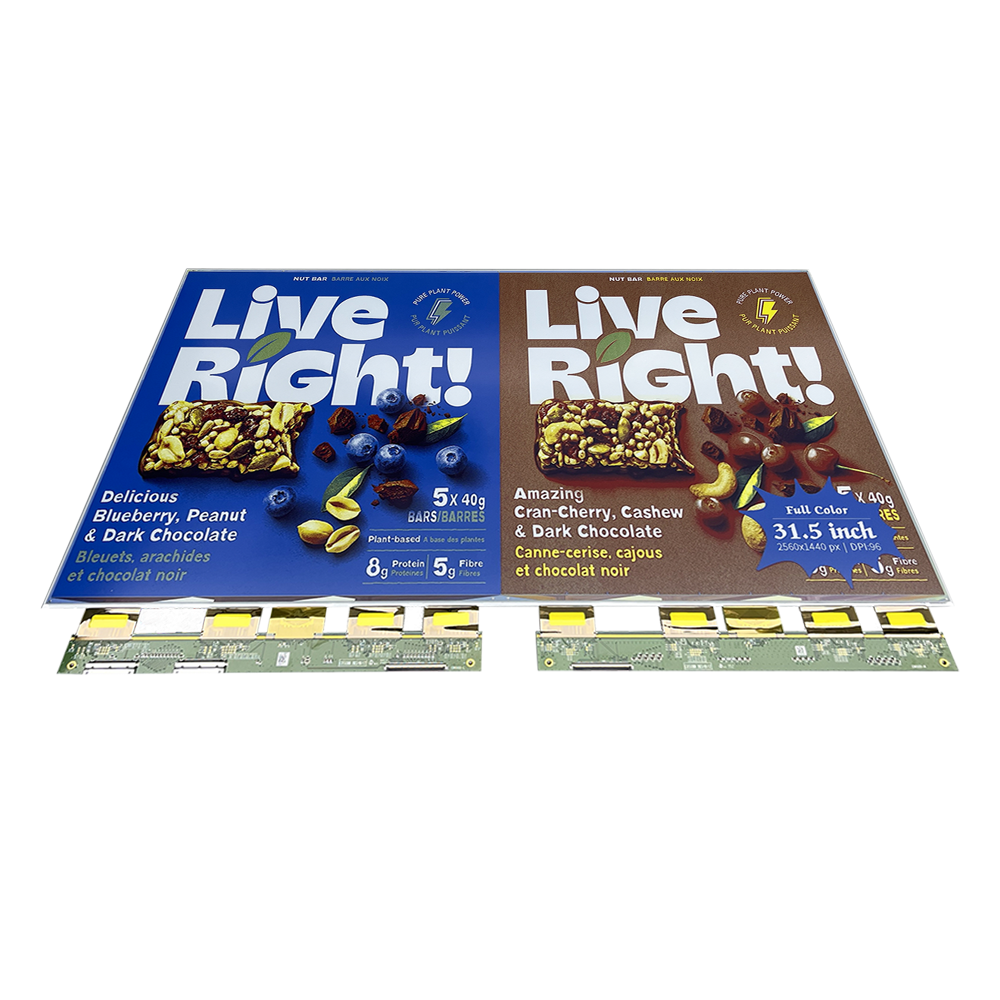

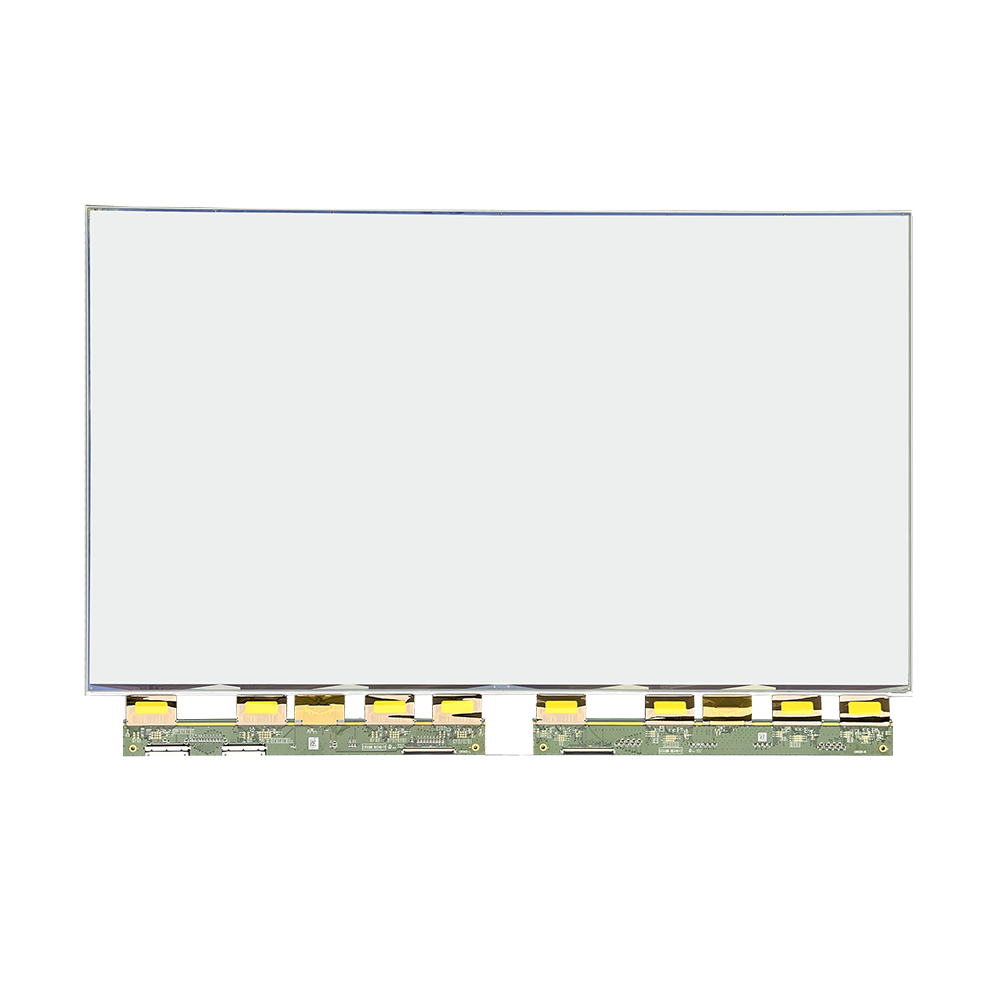

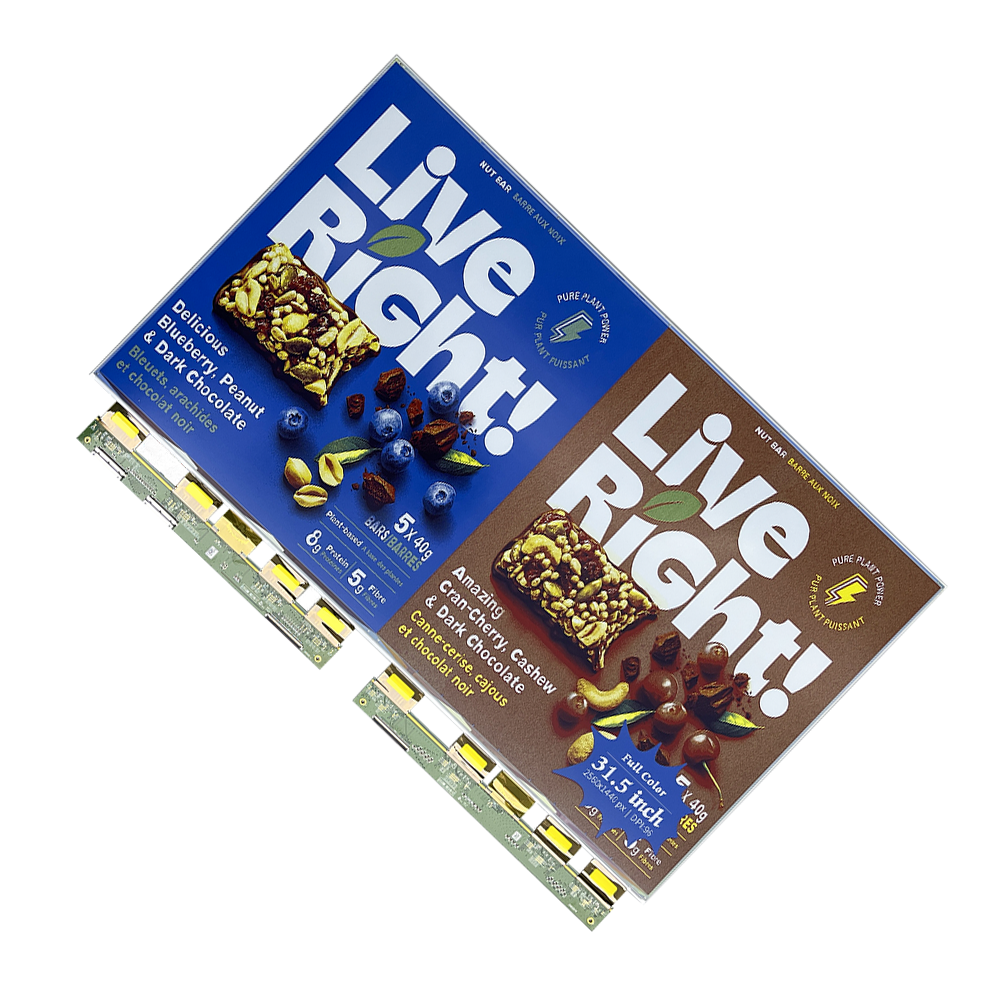

31.5 Inch Full Color E-paper Display
Size31.5 Inch
Outline Size(mm)703.52(H)×406.48 (V)
ColorFull color
View Area(mm)696.32 (H) x 391.68 (V)
DPI150
Resolution(px)2560(H) x 1440(V)
Interface /
Pixel (mm)0.272×0.272
Voltage3.0V
Driver IC/
Temperature0-50℃
SubstrateTFT
Weight(g)/
DKE Holding Company Limited
DKE was founded in 2005 and has dedicated continuously and diligently for over a decade to the E-paper market. Now we are a professional manufacturer and service provider of E-paper display technology products integrating R&D, design, production, and sales of many E-paper display modules. Now DKE is also one of the core enterprises of the global E-paper industry. DKE boasts four manufacturing bases and over 1,500 employees.
How e-paper works
| E-paper Series | Color |
| Black&White | Black,White |
| Tri-Color | Black, White, Red, |
| Four-Color | Black, White, Red, Yellow |
| N-Color | Black, White, Red, Yellow, Blue, Green, Orange |
| Flexible | Bendable, Thin and Robust |
| Segment | Customization Supported |
