Multi-particle ink system, Advanced Color ePaper (E Ink ACeP™). The ACeP™ ink platform achieves a full color gamut, including all eight primary colors, by using colored ink particles. The ink can be incorporated into either microcapsule or Microcup® structures. Color is achieved by having all the colored particles in every pixel, removing the need for a color filter array (CFA). ACeP™ maintains ultra-low power and paper-like readability under all lighting conditions of regular E Ink ePaper.
Full-color

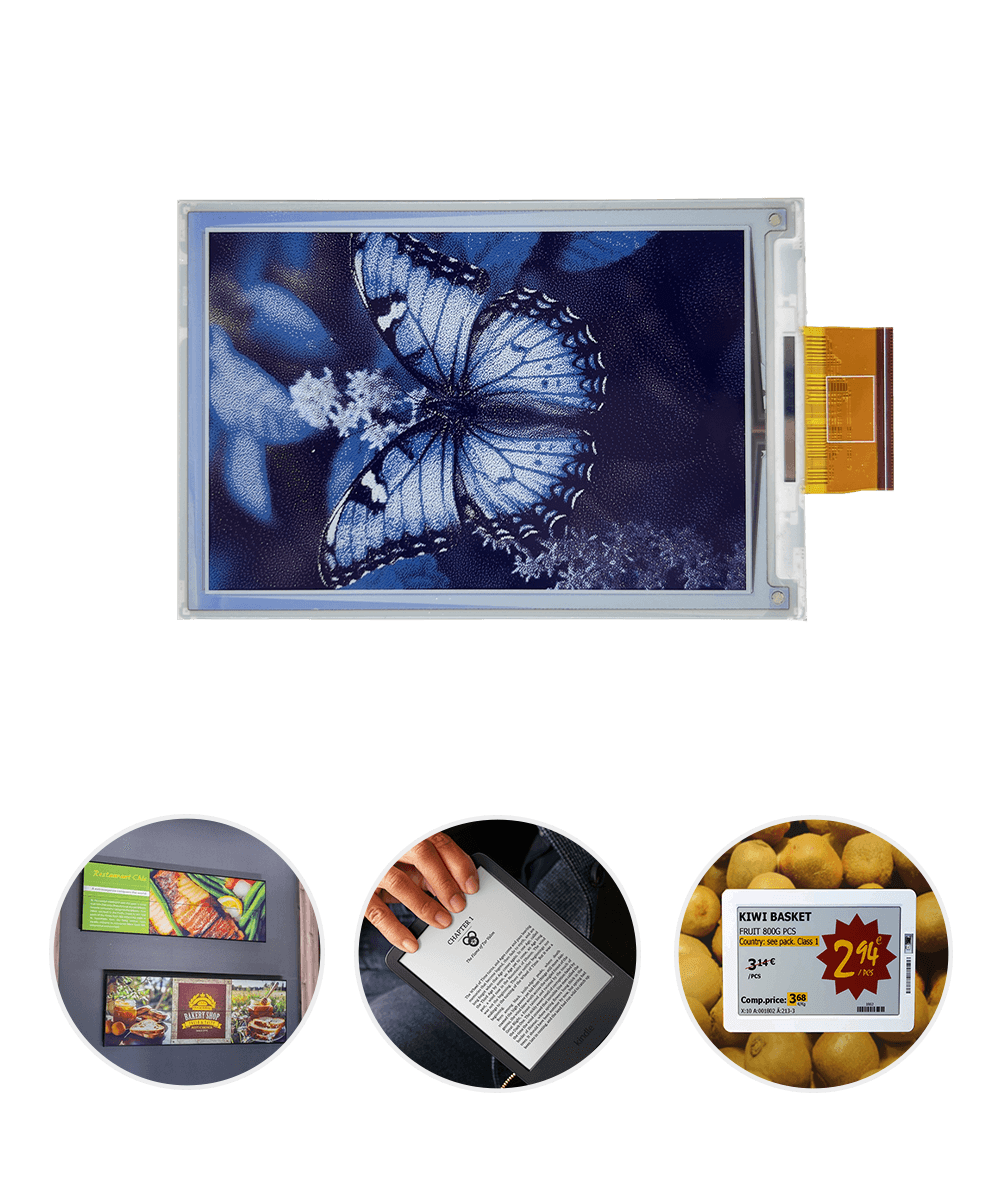

4 Inch Full Color E-paper Display
Size4 Inch
Outline Size(mm)66.0(H)x99.0(H)
ColorFull color
View Area(mm)56.4(H)x84.6(V)
DPI180
Resolution(px)400×600
Interface SPI
Pixel (mm)0.141(H)x0.141(V)
Voltage3.0V
Driver IC/
Temperature0-50℃
Substrate Glass base
Weight(g)11.92+1.19
DKE Holding Company Limited
DKE was founded in 2005 and has dedicated continuously and diligently for over a decade to the E-paper market. Now we are a professional manufacturer and service provider of E-paper display technology products integrating R&D, design, production, and sales of many E-paper display modules. Now DKE is also one of the core enterprises of the global E-paper industry. DKE boasts four manufacturing bases in Jiaxing City, Zhejiang Province， Dalian City, Liaoning Province, and Vietnam， with a total number of employees of over one thousand.
How e-paper works
| E-paper Series | Color |
| Black&White | Black,White |
| Tri-Color | Black, White, Red, |
| Four-Color | Black, White, Red, Yellow |
| N-Color | Black, White, Red, Yellow, Blue, Green, Orange |
| Flexible | Bendable, Thin and Robust |
| Segment | Customization Supported |
